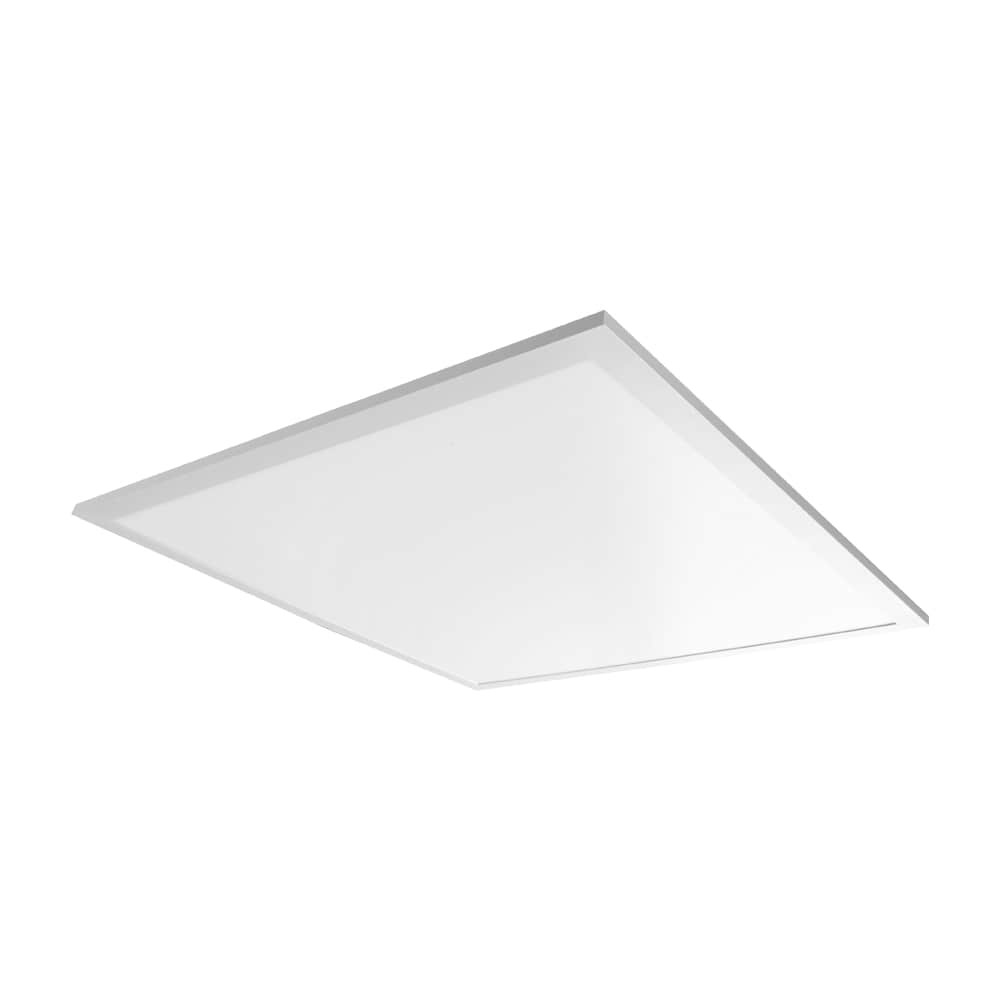

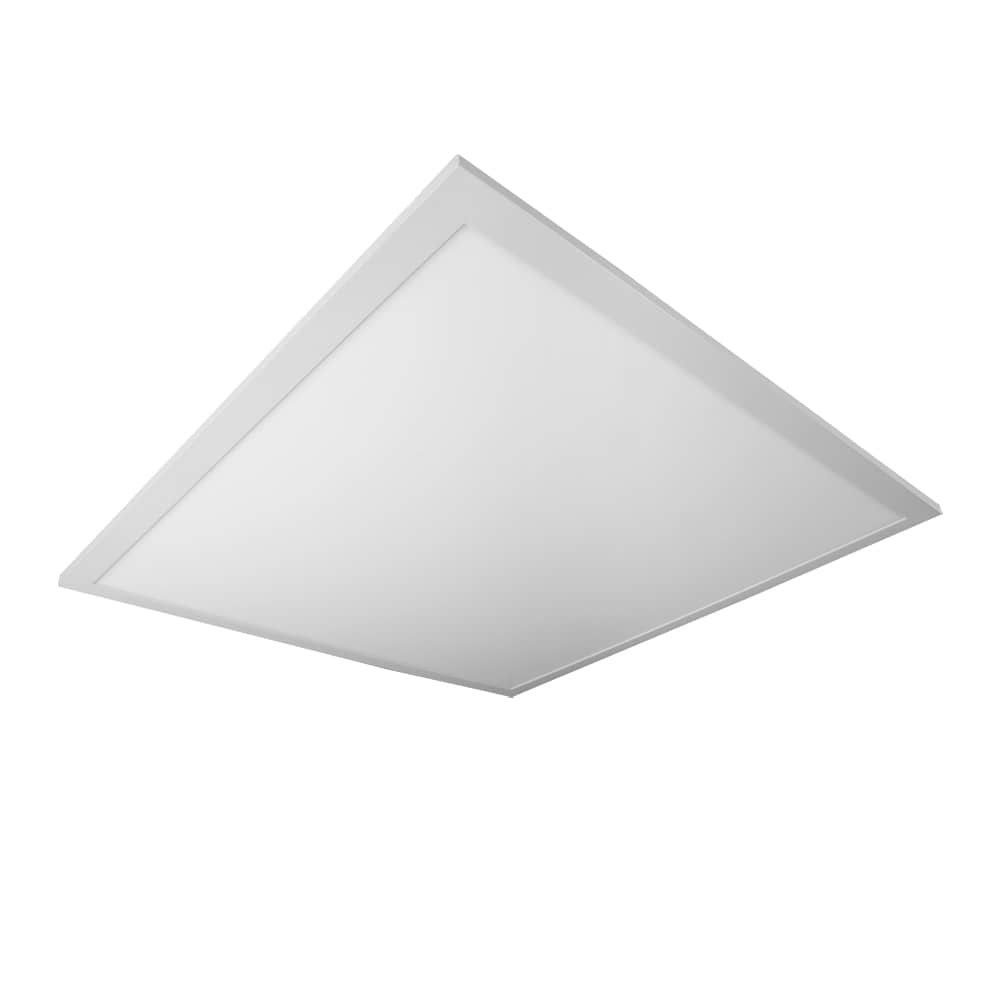

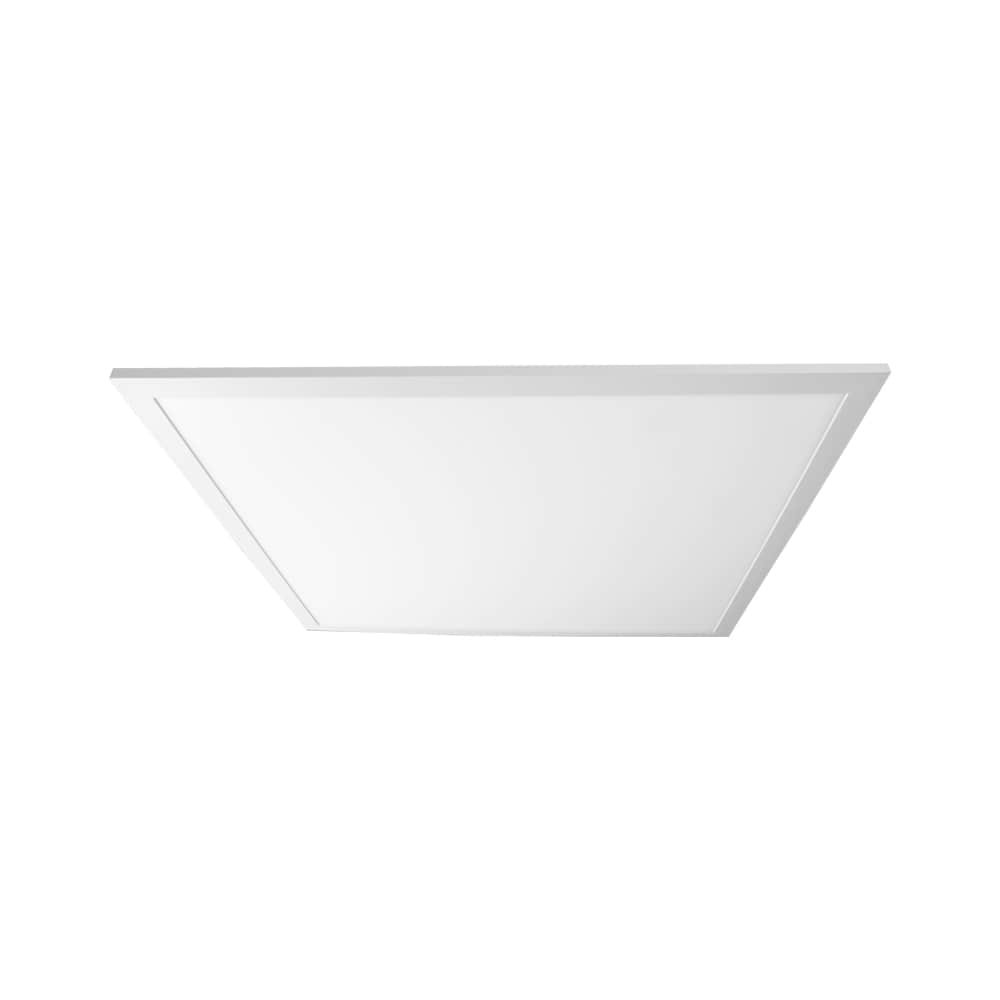

Edge-Lit LED Flat Panel Luminaire features with hign quality driver and PMMA light guide plate, and it is the best energy efficient alternatives solution for linear fluorescent recessed fixtures. Standard size of 1×4, 2×2 and 2×4 are designed to open up the room and distribute light spaciously along both the vertical and horizontal work space and providing suitable light without any of the maintenance issues associate with fluorescent tubes and ballasts. Constructed with a durable aluminum frame and LED lifetime rating of at least 50000 hours.
Certification:
Specification:
| Watts | 20W |
| Length(Inch) | 23.74 |
| Width(Inch) | 23.74 |
| Height(Inch) | 0.31 |
| Item Number | HT-G2P-22/UNV-C20N-XXDJ |
| Lumens | 2500LM |
| Efficacy(lm/w) | 125 |
| Life span(Hr) | 50000 |
| Weight(Lb) | 7.80 |
| Dimmable | Y |
Feature:
- Durable anodized aluminum frame with high reflective, matter powder coated paint
- High quality PMMA light guide plate creates uniform light, edge to edge, for every lit spaces
- Luminaires are available in 2×2, 1×4 and 2×4, ideal replacement for existing T8/T12 lay-in troffer fixture
- Surface,pendant and recessed mounting options available
- 120-277V Input, 50/60Hz
- PF>0.9
- CRI>80
- Available in wide range of color temperature from 3000K-5000K
- Ambient temperature: -20℃ to 40℃
- 5 year limited warranty
- Smooth 0-10V DC dimming feature and compatible with a wide variety of dimmers
