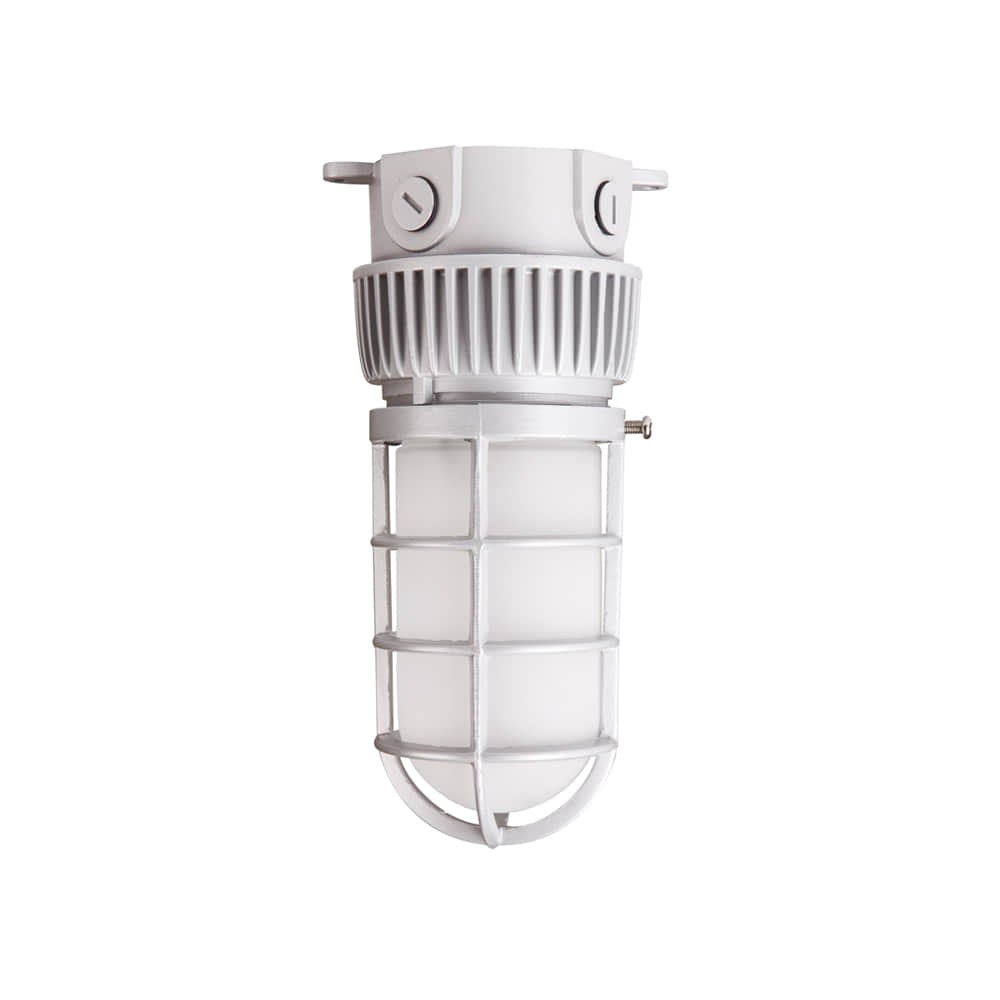

20W Jelly Jar LED V2

The future of Vapor Proof Jelly Jar LED luminaireis here. The VPJ series are energy conserving vapor proof jelly jar luminaire design to replace incandescent and CFL system. They are a versatile and economic light source that is good on the environment and use long life and high performance LEDs for energy efficiency and reduce maintenance cost. The system is IP65 rated against ingress of dust and pressurized water in harsh condition. The VPJ luminaire is designed for improve area safety and security, and it can be installing both wall mounted or ceiling mounted.

Certification:

certification 2.png

Specification:

Watts	20W
Length(Inch)	5.63
Width(Inch)	4.69
Height(Inch)	11.06
Item Number	HT-VPJSM-020IV-CXXBY-SULZ
Lumens	1700LM
CCT	4000/5000K
Efficacy(lm/w)	85
Life span(Hr)	50000
Weight(Lb)	3.50
Dimmable	N

Feature:

- Heavy Duty die-cast aluminum housing with anti-corrison texture architectural baked polyester powder coating

- Durable clear/frosted opal glass with cast aluminum guard

- Aluminum extruded heat sink designed to facilitate heat disppipation to reduce LED junction tempeature for maintaining lighting output and life span of the LED

- 120-277V Input, 50/60Hz

- PF >0.9

- CRI >70

- 140° degree beam angle even lighting distribution

- Ambient temperature: -25℃ to 54℃

- Humidity: less than 90% RH, non-condensing

- 5 year limited warranty
