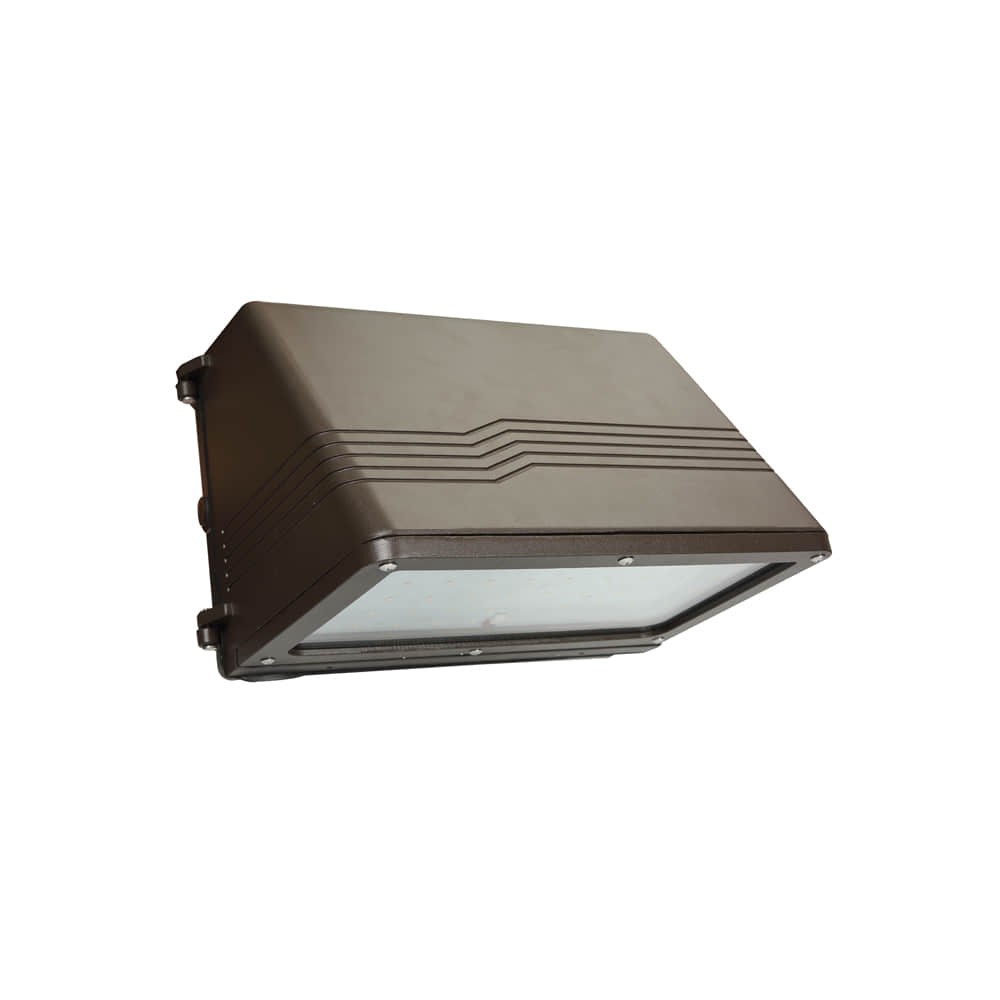

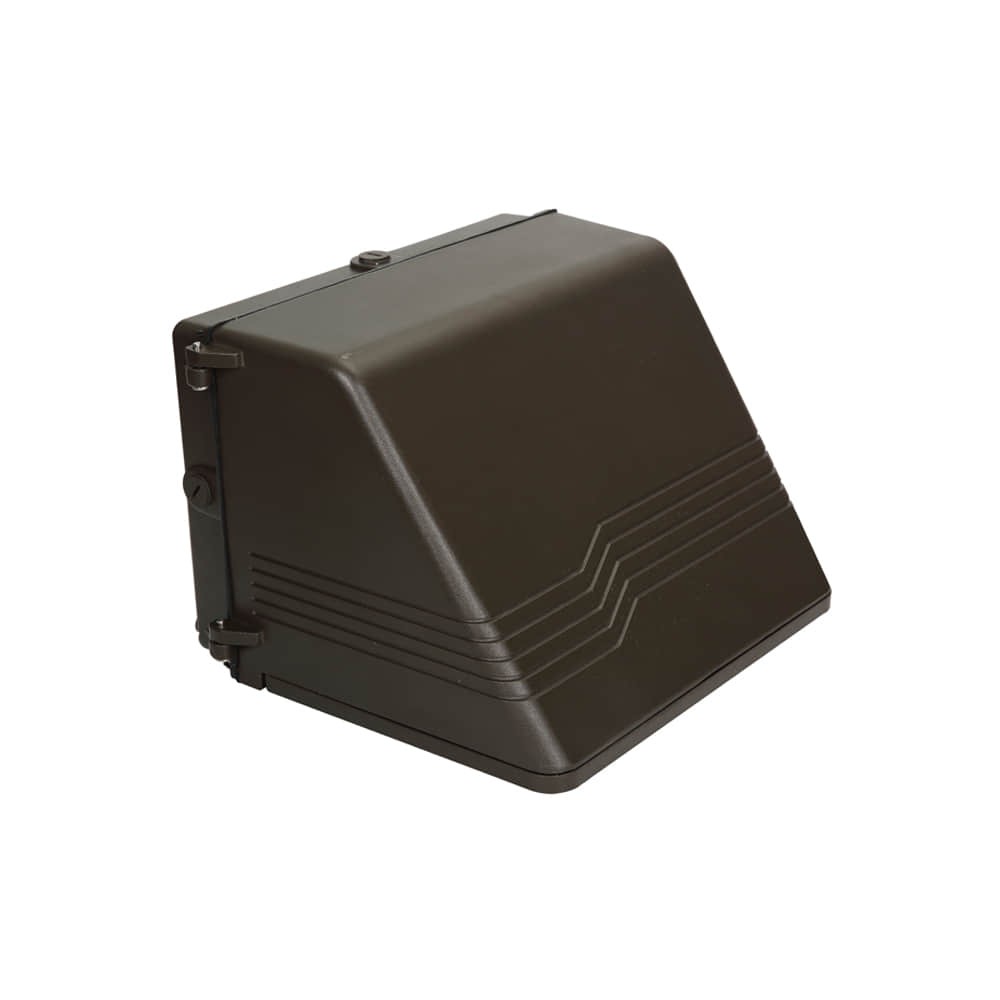

90W Full Cut-off Wall Pack

The Full-Cutoff LED Glass Wallpack is designed with new optics improve lumen output, efficacy, and thermal management to reduce shadows while still maintaining the consistency of the traditional wallpack housing and standard installation requirement. This wallpack were designed and engineered as maintenance free, energy efficient alteratives to traditional fluorescent, high performance LED light source with 50000hrs life time.

Certification:

Specification:

Watts	90W
Length(Inch)	14.17
Width(Inch)	11.42
Height(Inch)	9.06
Item Number	HT-WPG-090IV-CXXBY-SULZ
Lumens	11000LM
CCT	4000/5000K
Efficacy(lm/w)	122
Life span(Hr)	50000
Weight(Lb)	13.89
Dimmable	Y

Feature:

- Heavy Duty die-cast aluminum housing with anti

- Corrison texture architectural baked polyester powder coating

- Durable I5 clear/frosted opal glass with cast aluminum guard

- Aluminum extruded heat sink designed to facilitate heat disppipation to reduce LED junction tempeature for maintaining lighting output and life span of the LED

- 120-277V Input, 50/60Hz

- PF >0.9

- CRI >70

- 140° degree beam angle even lighting distribution

- Available in 4000/5000K

- Ambient temperature: -25℃ to 54℃

- Humidity: less than 90% RH, non-condensing

- 5 year limited warranty
