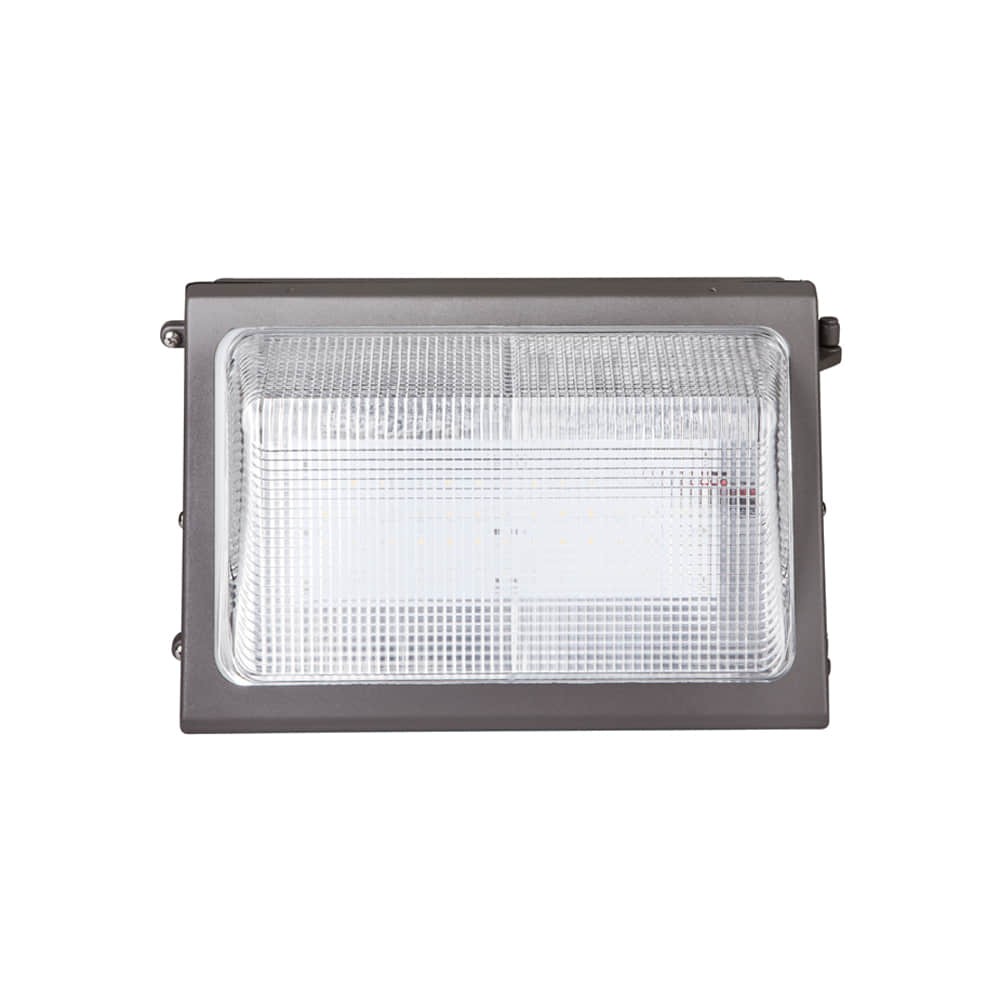

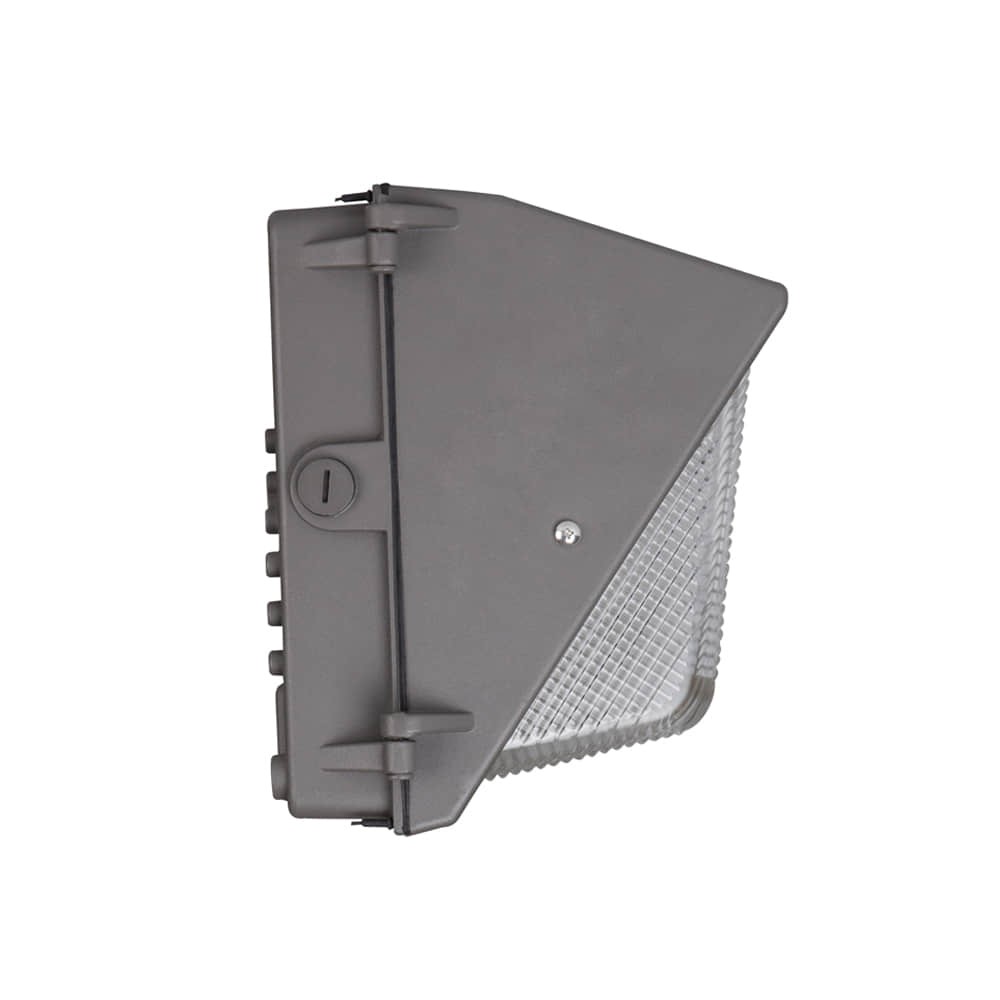

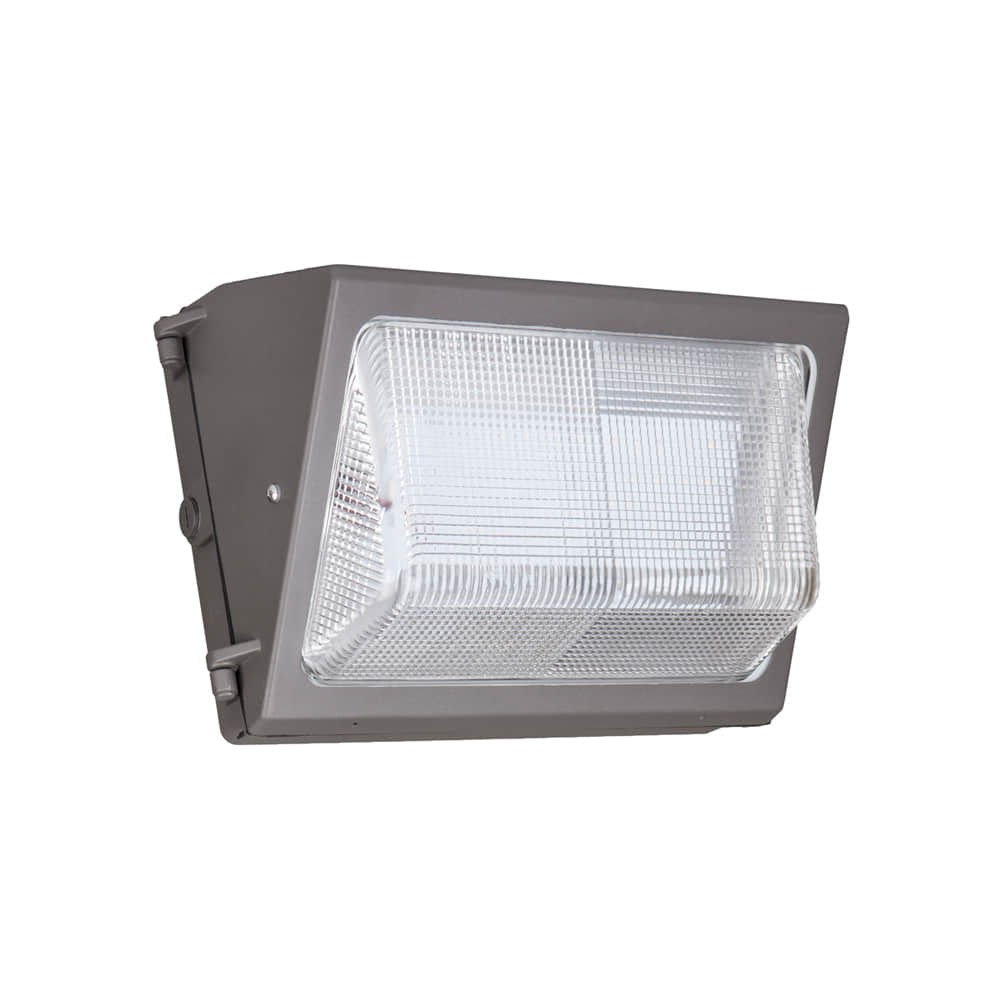

90W Non-Cutoff LED Glass Wallpack

The Non-Cutoff LED Glass Wallpack is designed with new optics improve lumen output, efficacy, and thermal management to reduce shadows while still maintaining the consistency of the traditional wallpack housing and standard installation requirement. Retaining the look of allows the ability to upgrade fixture gradually while retaining the same overall fixture appearance throuhghout the facility. This luminaire are ideal in almost any setting and provides the precision and maneuverability needed to create an attactive and functional lighting with 50000hrs life time.

Certification:

Specification:

Watts	90W
Length(Inch)	18.70
Width(Inch)	9.64
Height(Inch)	9.45
Item Number	HT-WPN-090IV-CXXAY-SULZ
Lumens	10566/13411LM
CCT	4000/5000K
Efficacy(lm/w)	117/149
Life span(Hr)	50000
Weight(Lb)	34.05
Dimmable	Y

Feature:

- Heavy Duty die-cast aluminum housing with anti

- Corrison texture architectural baked polyester powder coating

- Durable I5 clear/frosted opal glass with cast aluminum guard

- Aluminum extruded heat sink designed to facilitate heat disppipation to reduce LED junction tempeature for maintaining lighting output and life span of the LED

- 120-277V Input, 50/60Hz

- PF >0.9

- CRI >70

- 140° degree beam angle even lighting distribution

- Available in 4000/5000K

- Ambient temperature: -25℃ to 54℃

- Humidity: 20-85% RH, non-condensing

- 5 year limited warranty
